leesupra12

lol we will get there in the end. so to do the tacho i think someone told me bypass the resister on the tachometer. i need the second decat pipe the intercooler and these wires doing. do i need to change the fuel pump as the pump thats init is the same part number as the tt one. and i havent got a airflow meter wire on the harness so do i need to adapted that aswell .

yeah the engine bay was to easy to be true. but bin scratching my head 4 ages over the body plugs. what have u got left to do?

cheers bud im gonna try find someone that can work it out from the diagrams but most mahcanics round here are only fitters lol ill print them off and head to boston my nearest town and see if anyone there can help. have u done the same swap?

thanks buddy ill send him a message fingers crossed he can help me. the car im using is dead at the min so hoping to get the supra running but the wiring is giving me serious headache lol thanks again

thanks for that buddy. but do i need to track the wires from ecu to get the colours. and if so do you by any chance have the mkiv na1993 ecu with wire colours cuz i havent got the rest of the loom just the 2 body plug connectors. i have got the car running off about 4 wires the 2 black/orange wires ign and injectors. and red/ black wire put straight power from the battery and it starts on the key. i put the fuel pump wire to the ignition wire.

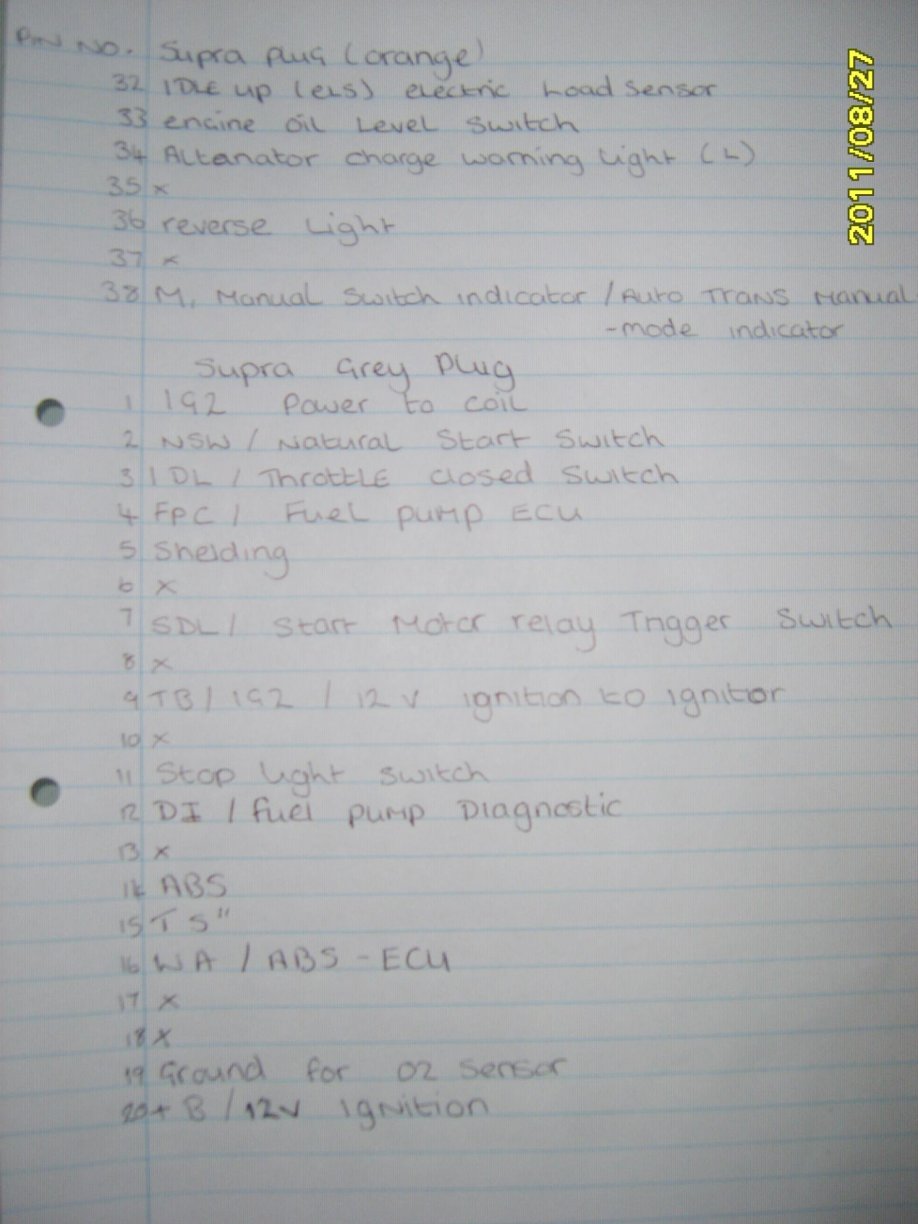

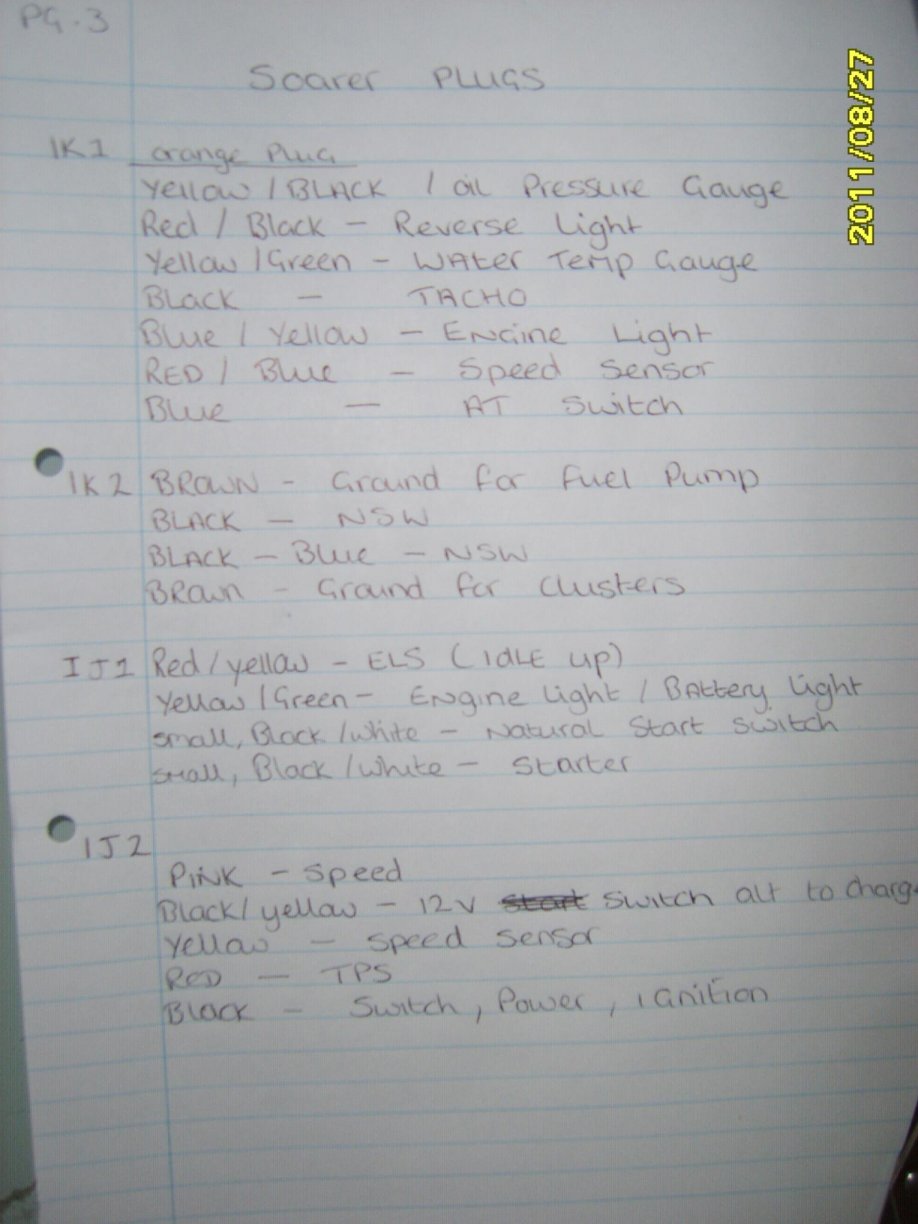

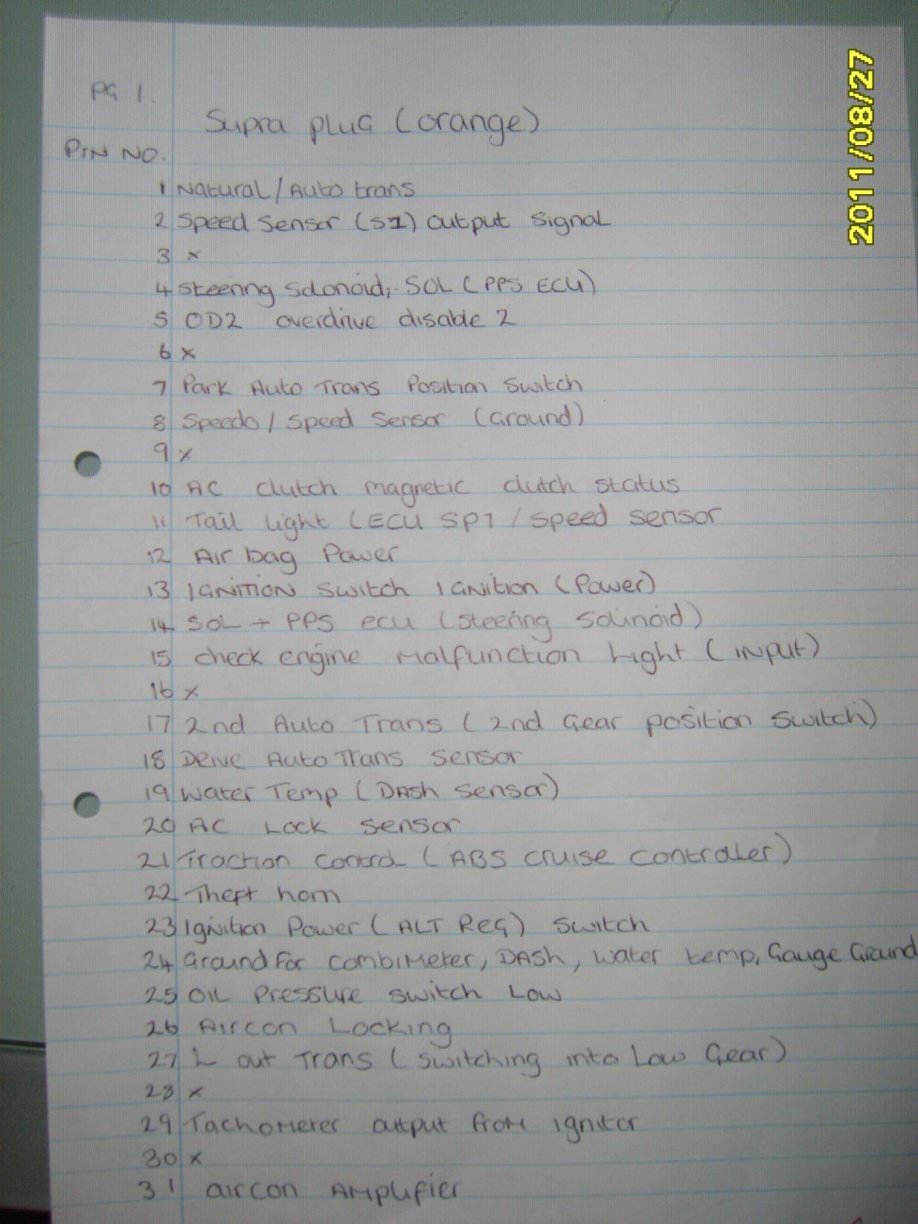

Hi again,ive been searching the web for info and all i have come up with is this, could anybody tell me if im going in the right direction .some how i can only get pin numbers for the supra plugs,and only colours for the soarer plugs,ive got the 93 mkiv supra body and a h-reg soarer engine,a little help would very much appreciated thanks

hi i have done the 1jzgte swap but the having some wiring issues have yougot any info on the body plugs please gagging for a go i can get it struck up its just what other wires i need.

has any one got a intercooler for sale?

starting on the key and running 12v to fuel pump.

hi i have got the car struck up on just the main wires the red/black main and the two brown/orange wires and i started it with a screw driver on the starter. does anybody no how to wire the rest up. or what wires i mainly need. cheers lee

thanks

hi and thanks for the welcome.

sorry for the inconvenience thanks steve for sorting it for me. i`m new to computers

i just connected a battery up to the car and my interoir seems to light up and alarm works and the blowers . so i have got power around the car body. is there a easyer way to put power to the engine from body so it runs. and then add gauges seperatly. thanks lee

thankyou

hi and glad to be part of the forum i have read alot of info off here but cant find what i need. i currently own a mkiv supra and converting it to a 1jzgte engine from a soarer. does anybody have the pinouts for the body plugs on a soarer and supra mkiv as i have searched every where for them. as everything seems to fit apart from the body plugs. im useing the soarer ecu. there are 3 plugs on the na 1 orange 1 gray and 1 white. and on the soarer 1 orange plug 2 gray plugs and 1 white and 1 white one further up. i was thinking if i got the diagram of what does what on each plug i could wire up accordingly and fingers x it works. please is there any body who can help it would be appriciated. thanks
